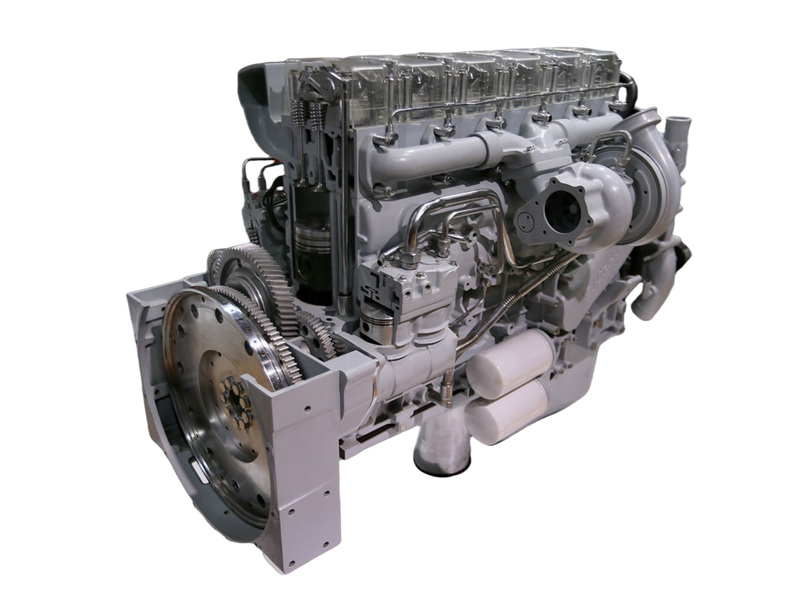

Introduction to Weichai WP12.420E32 Engine
The Weichai WP12.420E32 engine is one of the common used engine for Beiben heavy-duty trucks, with a displacement of 11.6 liters and an output of 420 horsepower. Renowned for its rugged durability, excellent low-speed torque, and fuel efficiency, it is widely installed in Beiben vehicles such as dump trucks and tractors, serving as a reliable cornerstone for operations in engineering and logistics sectors.
|
Weichai WP12.420E32 Diesel Engine Specifications |
|
|
Type |
Inline 6-cylinder, water cooled, 4 stroke, supercharged inter cooler |
|
Cylinder Valves |
4 |
|
Bore*Stroke (mm) |
126×155 |
|
Displacement(L) |
11.596 |
|
Rated Power |
420HP/309KW |
|
Rated Speed (r/min) |
2100 |
|
Compression ratio (mm) |
17:01 |
|
Max. Torque(Nm) |
1750 |
|
Speed at Max. Torque (r/min) |
1200~1500 |
|
Min. Specific Fuel Consumption (g/kW.h) |
185 |
|
Net Weight(kg) |
1050 |
|
Emission |
Euro Ⅲ |

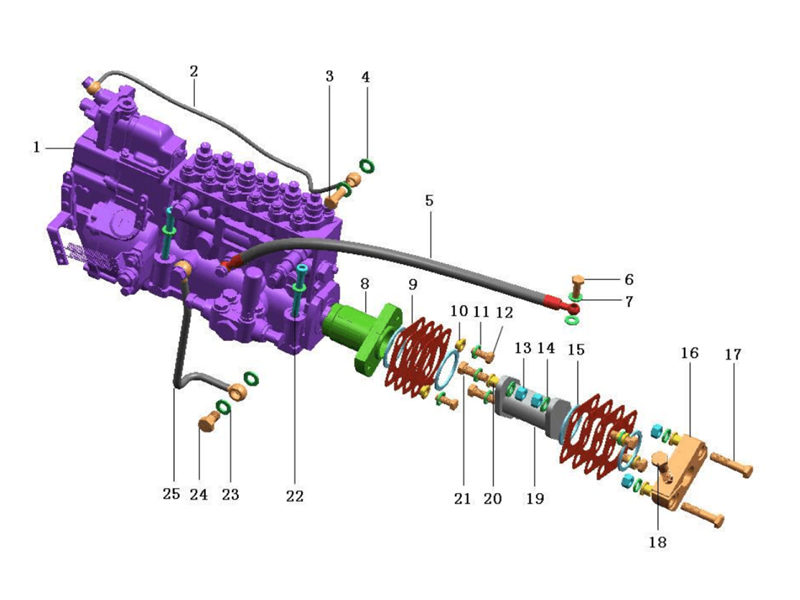

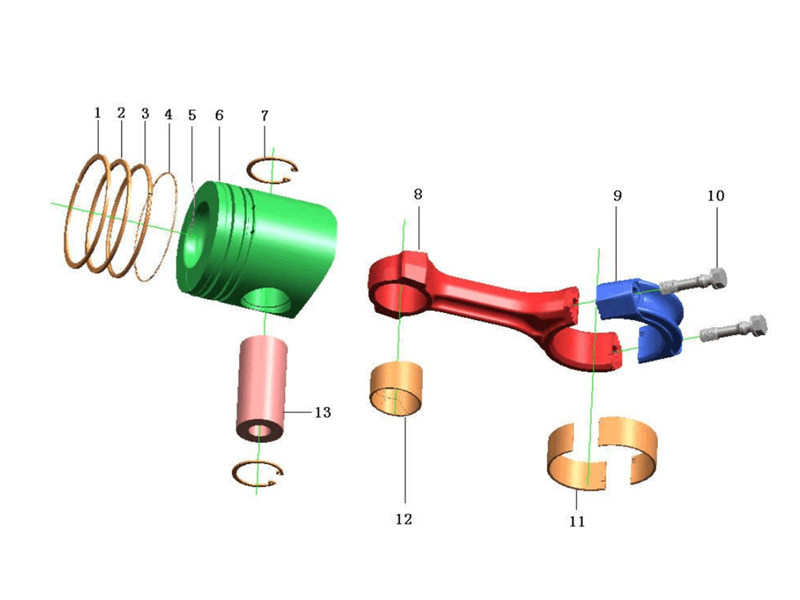

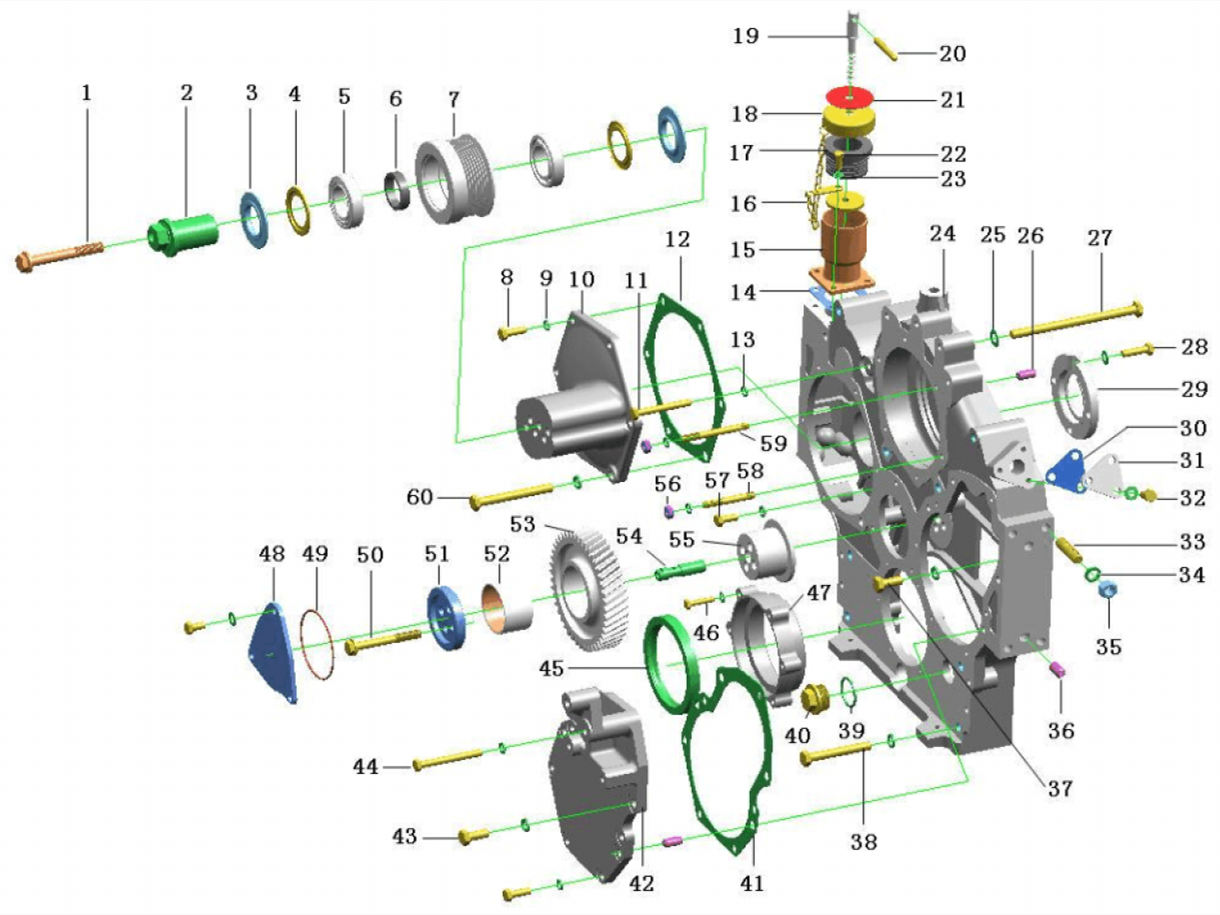

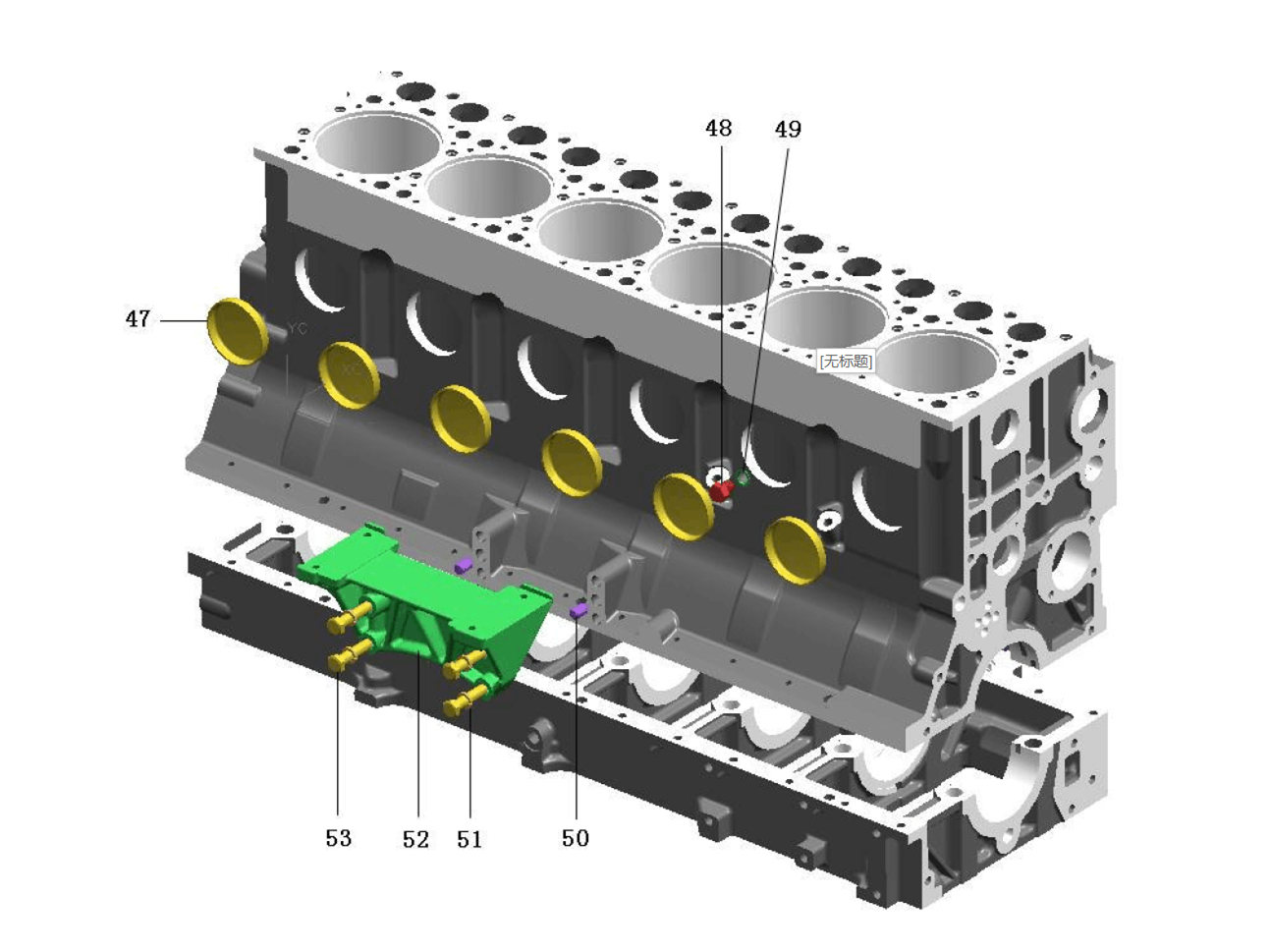

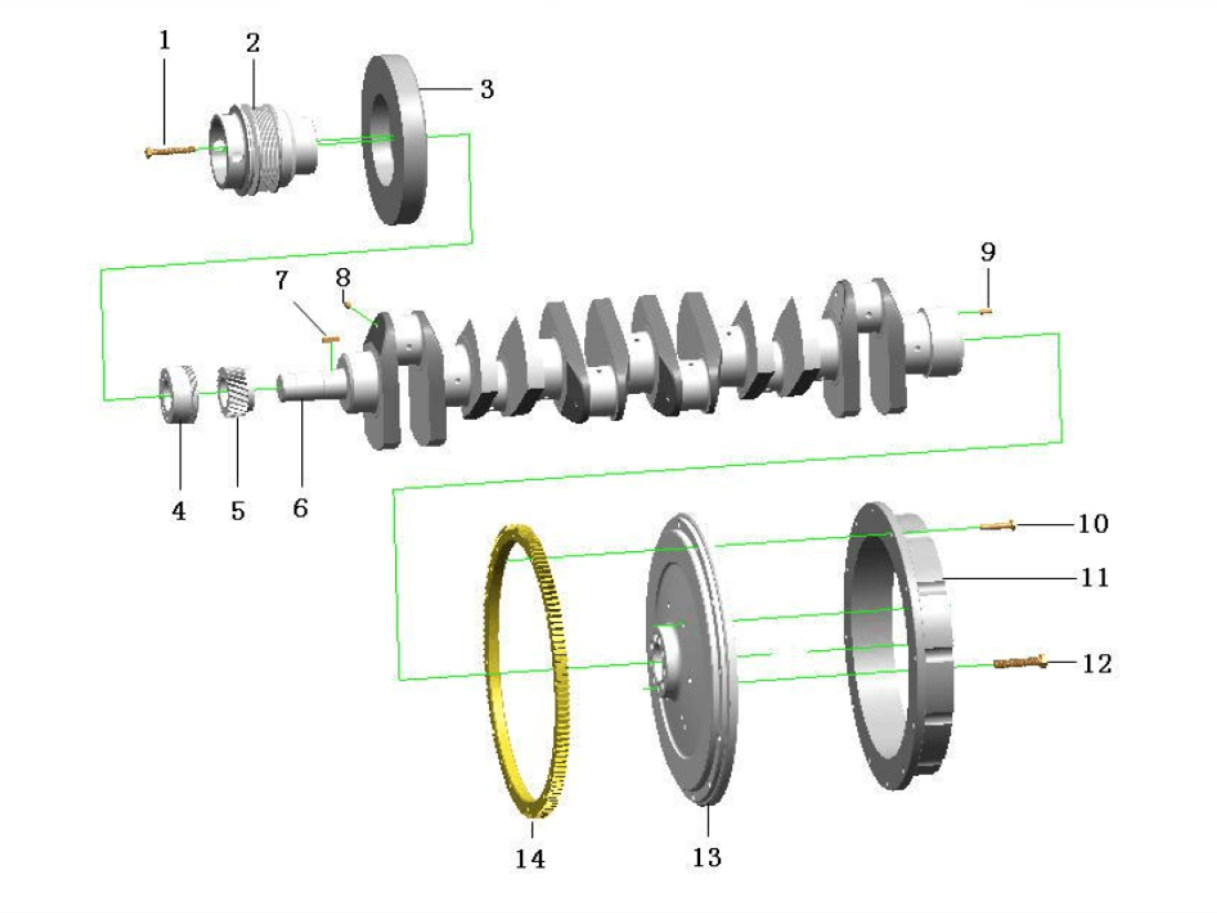

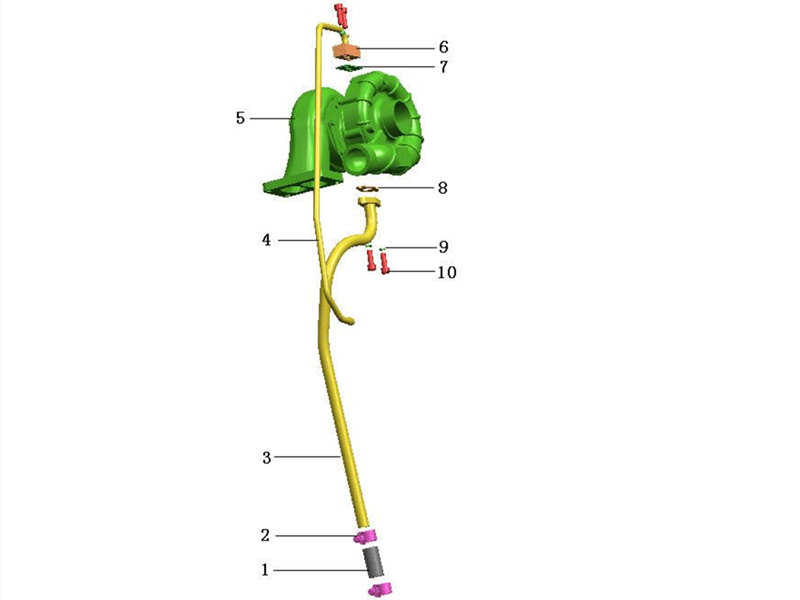

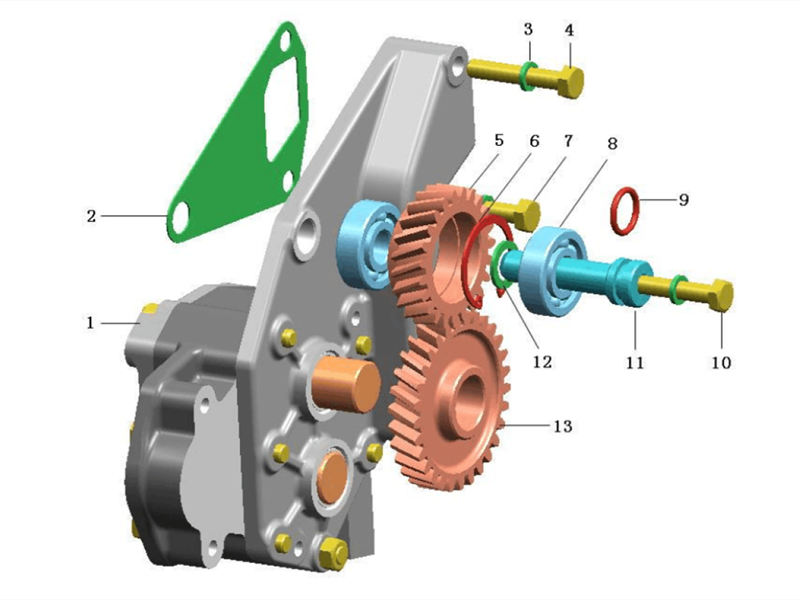

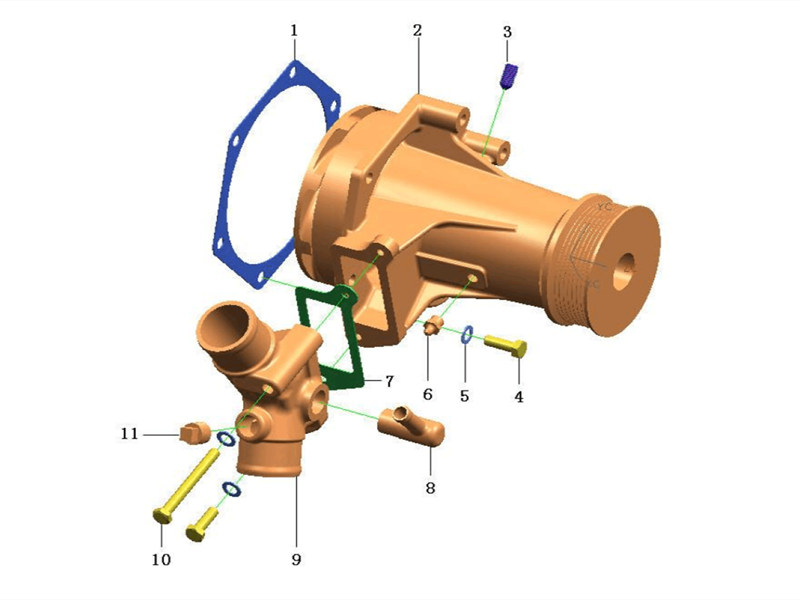

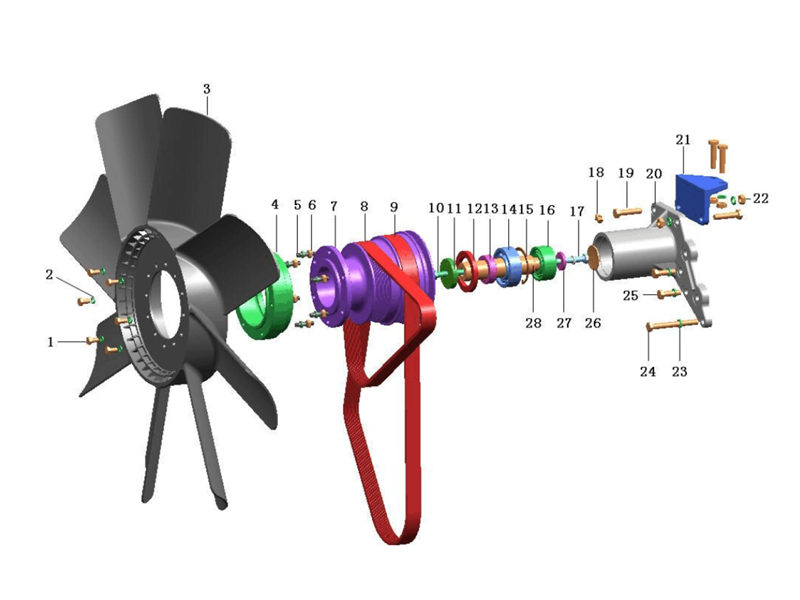

Exploded View of WP12.420E32 Engine Components
Beiben 2642 truck engine manual- PDF Down Load

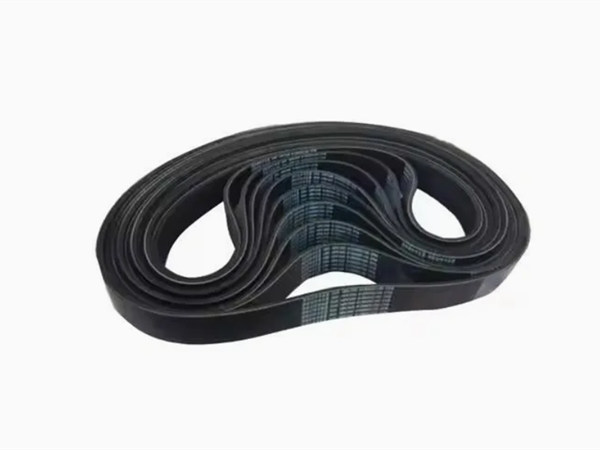

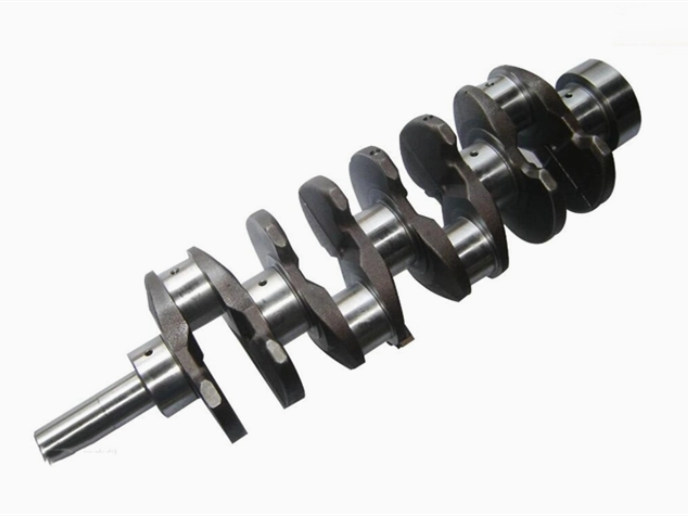

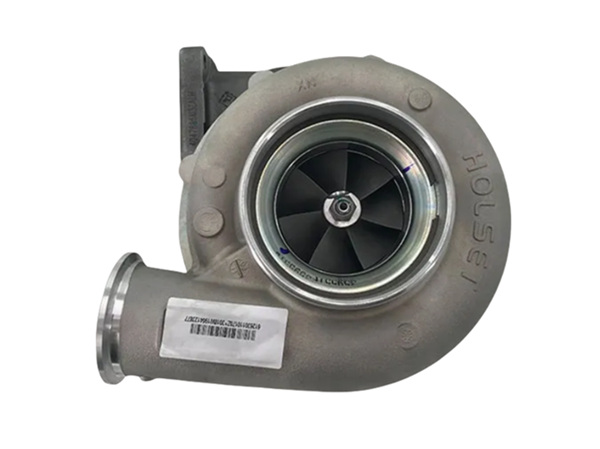

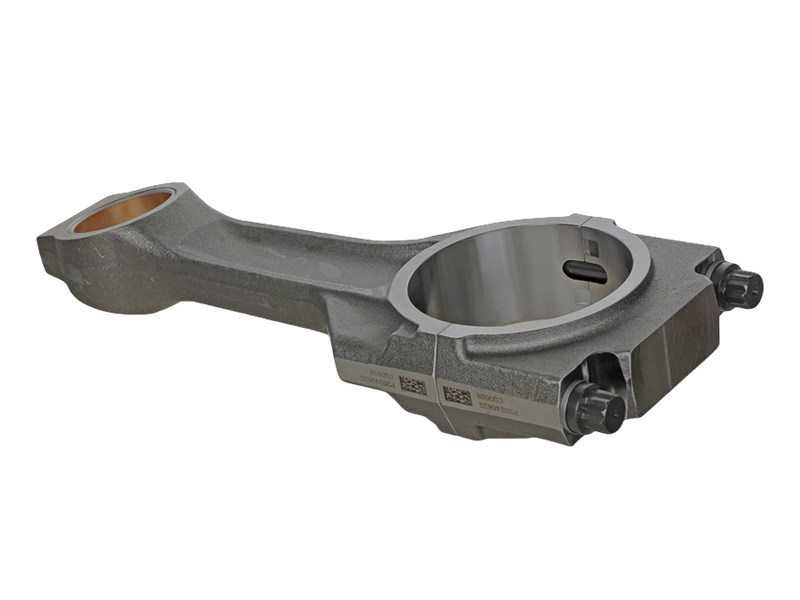

Hot Sales of Beiben 2642 Truck Engine Parts

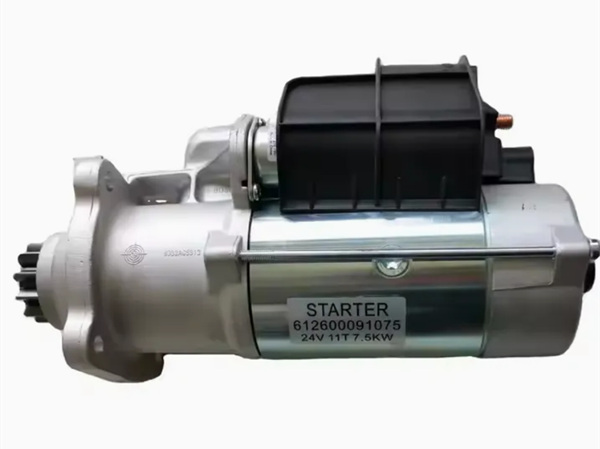

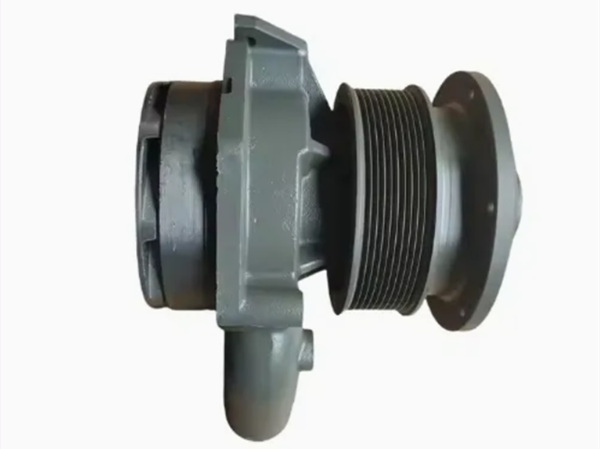

As a professional supplier of Beiben trucks spare parts, we can provide with customers full range of Beiben engine spare parts, including fuel filters, oil filters, air filters, starter, generator, water pump, etc.

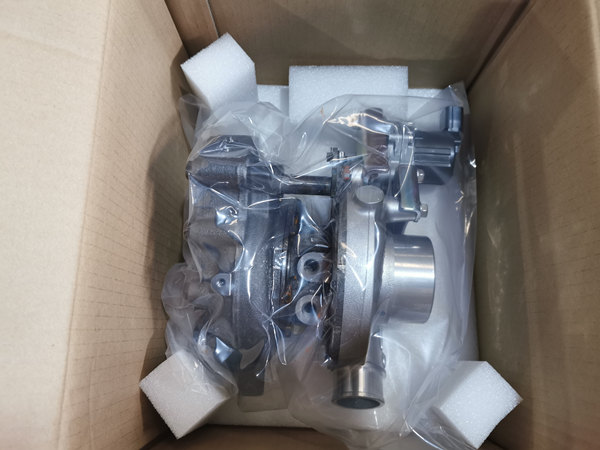

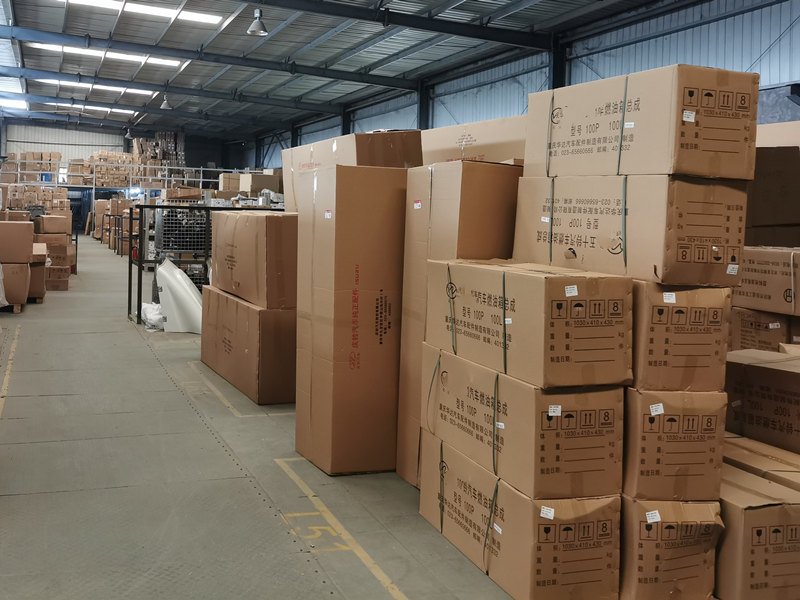

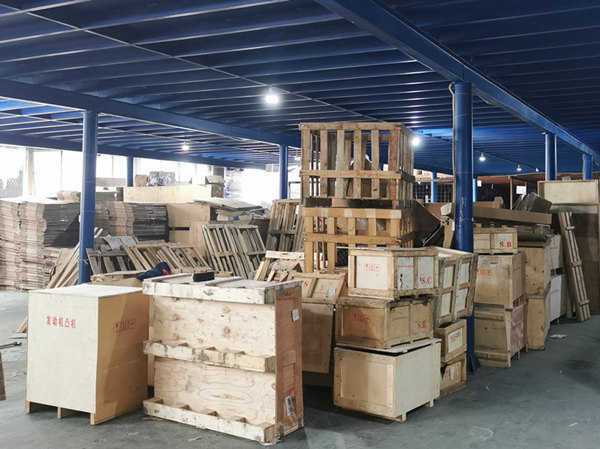

Packing of Beiben Engine Parts
All our parts are well protected and packed in carton box or wooden case. Carbon box usually used for light or less fragile parts, wooden case for larger or fragile parts.
