محرك Weichai WP12.420E32 هو محرك ديزل رباعي الأشواط، سداسي الأسطوانات، مبرد بالماء، مزود بشاحن توربيني ومبرد داخلي، من سلسلة Weichai Power WP12، بسعة تقارب 11.596 لترًا، وقدرة قصوى تبلغ 420 حصانًا (حوالي 309 كيلوواط)، وعزم دوران أقصى يبلغ حوالي 1750 نيوتن متر. يتميز هذا المحرك بهيكل متين ومدمج، وكفاءة عالية في استهلاك الوقود، ويُستخدم على نطاق واسع في مجالات النقل الهندسي، مثل الشاحنات الثقيلة والجرارات.
البعد (مم):
1650×820×1100mmقوة المحرك:
420HPملاحظة:
Brand new WP12 series enginesال Weichai WP12.420E32 engine adopts an electronically controlled high-pressure common rail injection system and a turbocharged intercooled intake. It has a compact structure, good fuel economy, and strong adaptability. It is an inline 6-cylinder, water-cooled, four-stroke turbocharged intercooled diesel engine with a displacement of approximately 11.596 L and a power output of 420 horsepower (approximately 309 kW). It is commonly used in heavy-duty trucks, tractors, and other transport vehicles, and meets the China III/Euro III emission standards.
» Ⅰ. Product Defination and Introduction:
Supplier: CEEC TRUCKS
▶ Engine Model: WP12.420E32
▶ Engine Brand: Weichai
▶ Engien Power: 309KW/420HP
▶ Displacement: 11596 ml
» Ⅱ. Product Specifications:
|
Model NO. |
WP12 .420E32 Engine |
|
Product Name |
Weichai Diesel Engine |
|
Cooling System |
Liquid-cooled |
|
Cylinder Configuration |
Inline 6-cylinder |
|
Emission Standard |
Euro 3 |
|
Engine Displacement |
11.596L |
|
Max output power |
309Kw |
|
Fuel Type |
Diesel |
|
Horsepower |
4 20 hp |
|
Total Displacement |
11.6L |
|
Rated Speed |
2 1 00r/Min |
|
Max torque |
1750N.m |
|
Minimum fuel consumption rate at full load |
185g/kW.h |
|
Exhaust Gas Treatment |
EGR Technology |
|
Intake Method |
Turbocharged Intercooled |
|
Compatible Models |
Beiben, Sinotruk , Shacman |
|
Transport Package |
Export Wooden Box |
|
Specification |
1 650 x820x1100mm |
|
W eight |
1050kg |
|
Trademark |
Weichai |
» Ⅲ. Schematic Diagram of WP12.420E32 Engine: :
|
|

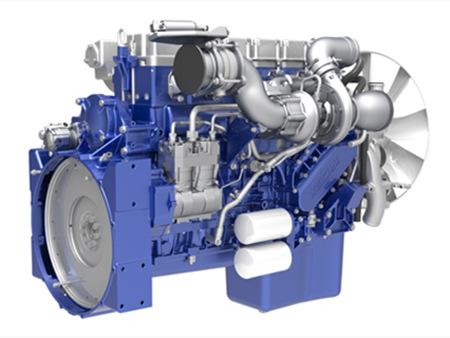

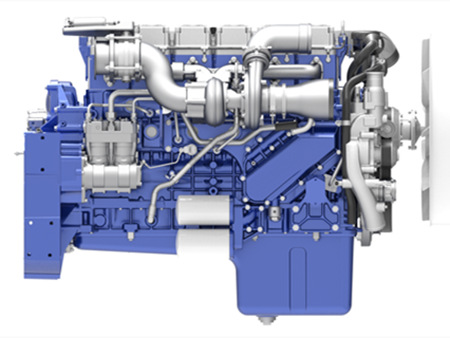

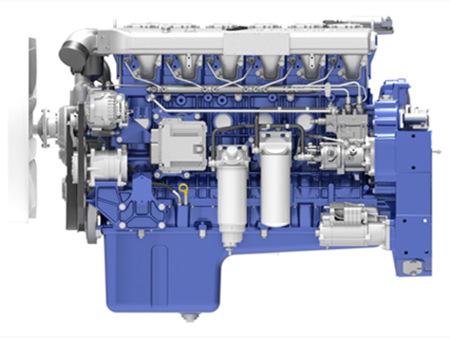

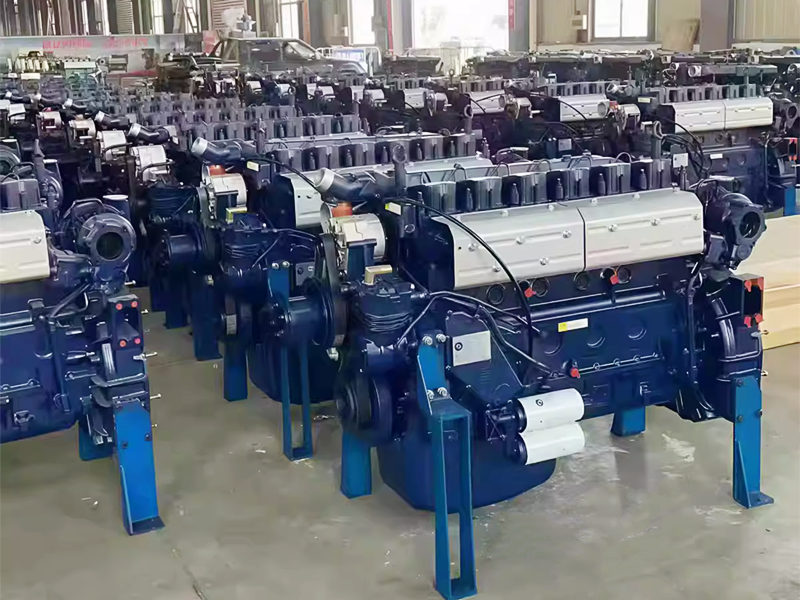

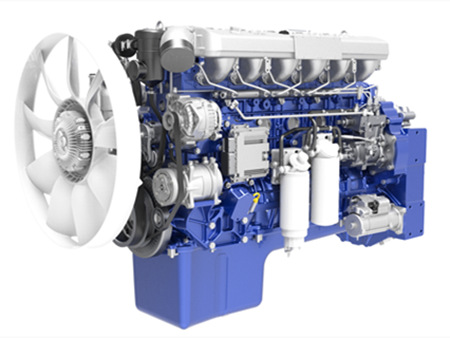

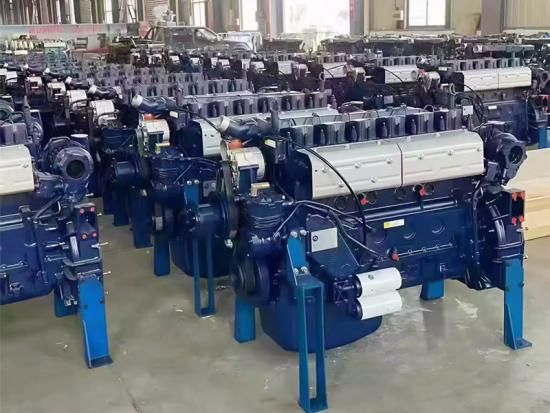

» Ⅳ. Product Details:
|
|
|
|
