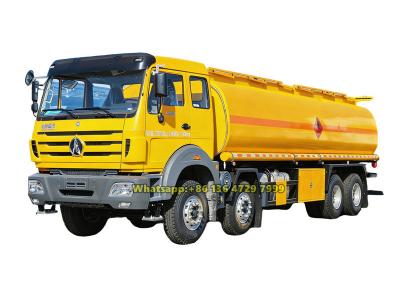

Chassis Specification

Cab

Beiben NG80B long cab, 2 seats, one sleeper berth, with A/C

Driving Type

8*4 Left hand driving

Max Speed (km/h)

80

Overall dimension (mm)

11500×2500×3450

GVW (kg)

31000

Mass in working order (kg)

14300

Wheelbase (mm)

1500+4450+1450

F/R track base (mm)

2042/2042; 1904/1904

F/R overhang (mm)

1435/2300

Approach/Departure Angel

17/46

Tire

12.00R20

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

FAST, 12JS200T, 12-speed

Axles

Front axle

7500kg+7500kg

Rear axle

13000kg+13000kg

Engine

Brand

WEICHAI

Model

WP10.380E32

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke, 6 cylinders, direct injection, turbocharged

Exhaust (ml)

9726

Emission standard

Euro 3

Max output power

280KW/380HP

Rated speed

2200 rpm

Max. torque

1600N.m

Braking system

Service Brake

Air brake

Park Brake

Spring energy

Electric system

24v

Superstructure Specification

Fuel tank

Volume of tank

30000L

Compartment

4

Tank shape

Quadrate

Material of tanker

High Quality Carbon Steel

Thickness of tank

5mm

Color of the tanker

According to customer requirments

Transport medium

Diesel oil, gasoil or others

Fuel pump

Model

80YHCB-60

Fuel Flow Rate (m ³ /h)

60

Working Pressure (MPa)

0.6

Revolving Speed (r/min)

900

Self-Suction Height (m)

6

Rated Power (kw)

7.5

Safety accessories

Manhole cover

European standard cover

Anti-overflow probe

Gas recovery joint

Bottom Filling Device

API discharge valve

Pumping outlet & inlet

Oil and gas recovery valve

Anti-overflow anti-static socket

Percolator

Bottom of tank valve

Emergency valve

Fittings

PTO oil pump

Discharging Pipe

Discharging Pipe box fitted on both side of tank

Fire extinguisher

One spare tire

Ladder: For access to top of tank complete with cat walk on top of tank

Heavy-duty rear bumper

طراز المضخة

التدفق

(م3/ساعة)

ضغط العمل

(ميجا باسكال)

سرعة الدوران

(دورة/دقيقة)

الفعالية

(%)

ارتفاع الشفط المسموح به

(م)

مزود بمحرك

قوة العمود

القدرة (كيلوواط)

50YHCB-4

4

0.6

960

60

5

1.1

1.5

50YHCB-8

8

0.6

960

60

5

2.2

3

50YHCB-12

12

0.6

960

60

5

2.4

3

50YHCB-15F

15

0.6

970

60

5

3.8

2.2

50YHCB-1

15

1.6

970

60

5

3.8

4

65YHCB-15

15

0.6

960

60

5

3.9

4

65YHCB-20

20

0.6

960

62

5

5.0

5.5

65YHCB-25

25

0.6

960

65

5

5.0

5.5

65YHCB-30

30

0.6

960

65

5

7.1

5.5

65YHCB-35F

35

0.6

970

66

5

7.1

5.5

65YHCB-40

40

0.6

960

65

5

7.4

7.5

65YHCB-45

45

0.6

800

٧٢

5

7.4

7.5

٧٦YHCB-٤٠

40

0.6

960

٧٠

5

7.4

7.5

٧٦YHCB-٥٠

٥٠

0.6

960

٧٠

5

10.3

7.5

80YHCB-60

60

0.6

960

٧٠

5

14.2

11

80YHCB-60A

60

0.6

960

٧٠

5

14.2

11

80YHCB-80

80

0.6

960

٧٠

5

16.3

18.5

80YHCB-80A

80

0.6

960

٧٠

5

16.3

18.5

100YHCB-100

100

1.6

960

٧٢

5

22.3

22

100YHCB-150

150

1.6

960

60

5

24.5

24

125YHCB-200

200

1.6

960

60

5

32.7

32

125YHCB-250

250

1.6

960

60

5

40.8

40

150YHCB-300

300

1.6

960

60

5

49

٥٠
