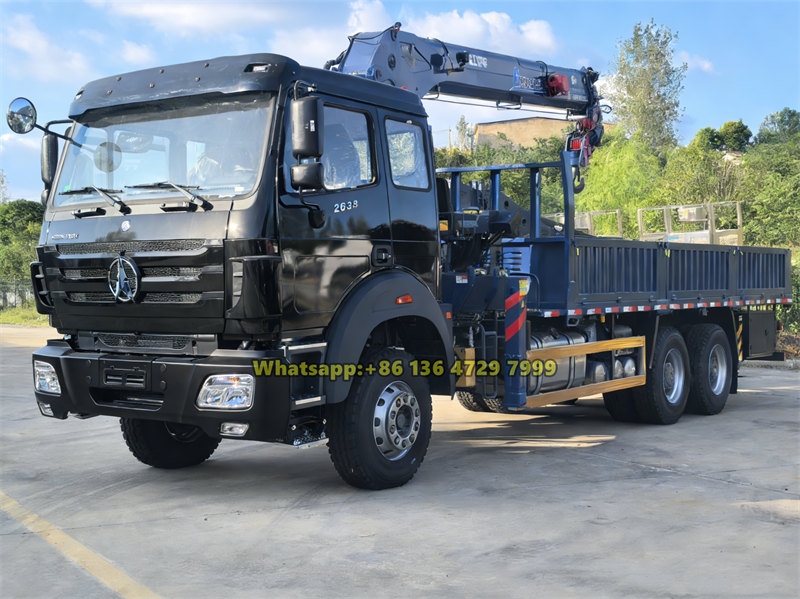

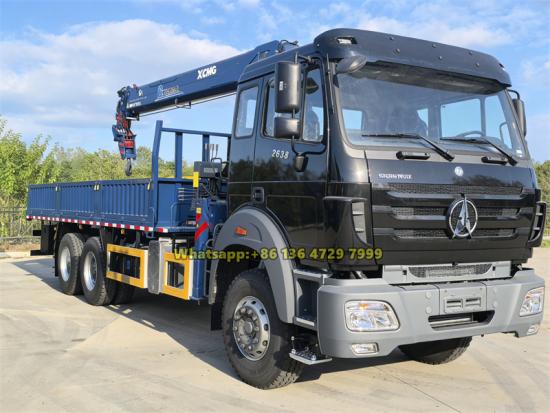

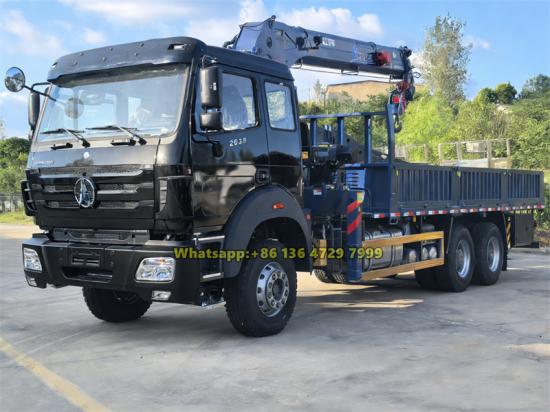

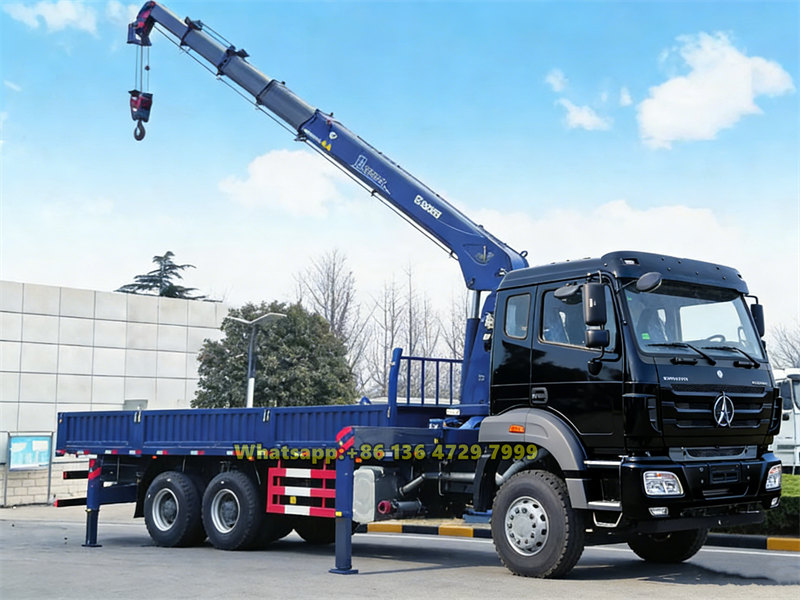

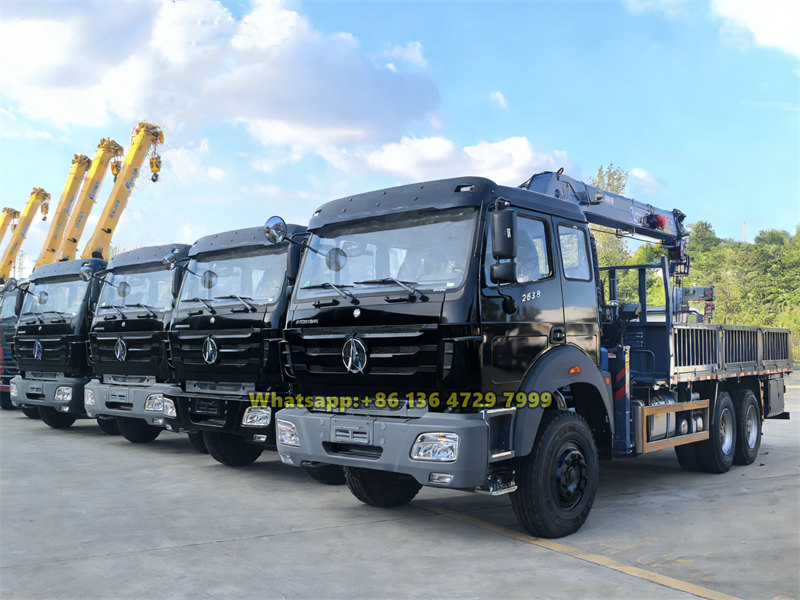

Beiben 2638 service truck with crane

General Technical Parameters

Overall Dimension

10600 ×2 55 0×3 80 0 mm

Gross Vehicle Weight

2600 0Kg

Curb Weight

16500 Kg

Chassis Specification

Chassis Brand

Beiben

Drive model

6x4,LHD

Cabin

NG80B long cabin , Left Hand Driving, with one bed, A/C

Number of Passengers

3

Engine

Type

Inline 6 cylinders, water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled, diesel

Model

WP10.380E32

Power

3 80 HP / 280kW

Rated speed

2200rpm

Max torque

1 6 00N.m

Max torque speed

1 5 00-1 8 00rpm

Emission standard

EURO 3

Displacement

9.726L

Gearbox

FAST 12JS200T, 12F & 2R, ,manual

Brake System

Air br ake

Wheel Base

4450+1450 mm

Front/Rear Axle Loading

7500kg/13000kg × 2

Tire

12.00R20, 10+1 tires

Max Driving Speed

89 km/h

Upper Body Specification

Cargo Body

Dimension

7200 x2 45 0x 6 00mm

Material

Q235 carbon steel

Cargo Thickness

Side 6 mm, Bottom 8 mm

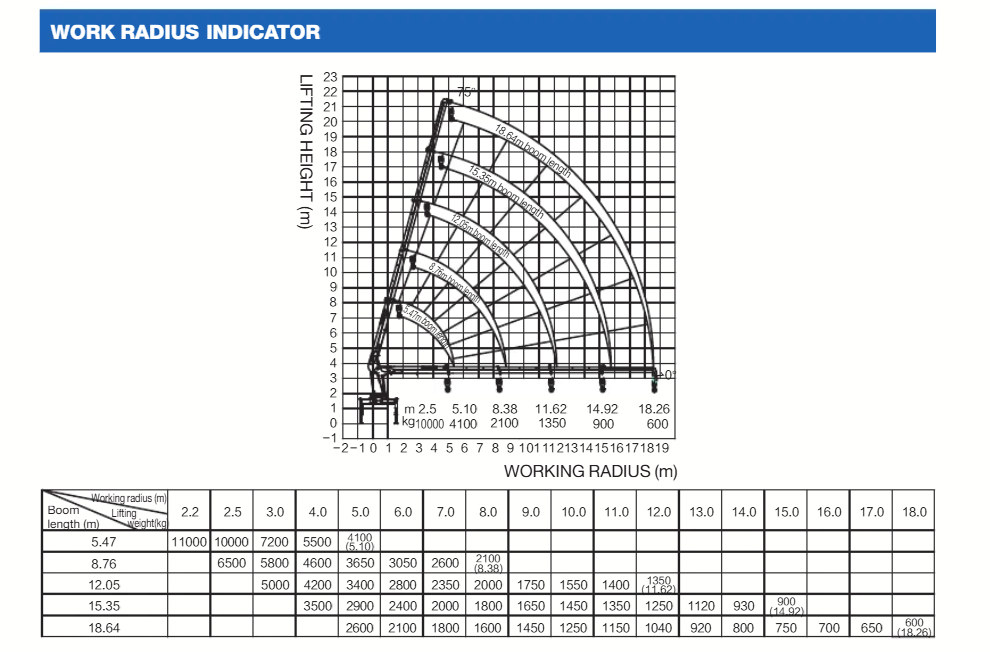

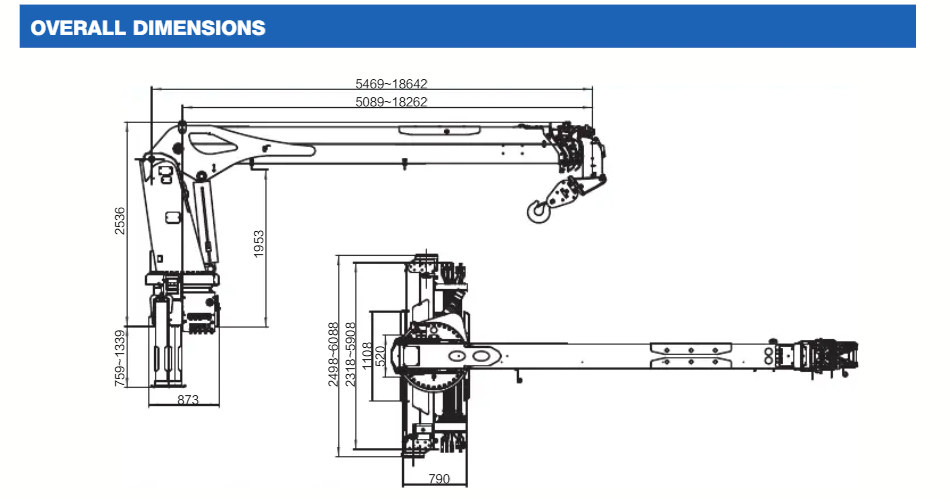

Boom crane

Crane model

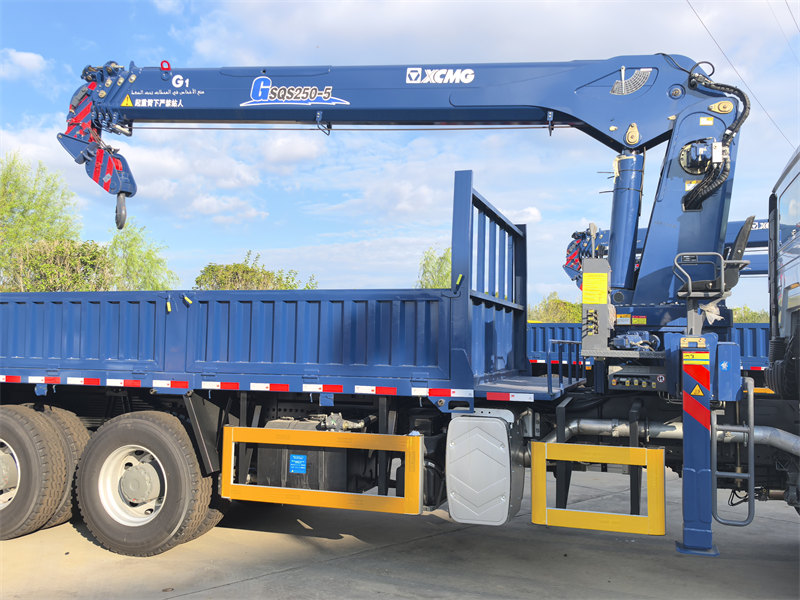

XCMG GSQS250-5 boom crane

Max. Lifting Moment

260kN · m

Max. Lifting Capacity

1 0 000kg

Max. lifting height

20m

Max. Hydraulic Boom Length

18.64m

Rotation angle

360° ALL Rotation

Amplitude range

0~75 °

Installation space

1200mm

Maximum working pressure

26 Mpa

Recommend power

49Kw

Hydraulic system flow

63+50 L /min

Crane weight

4100 kg

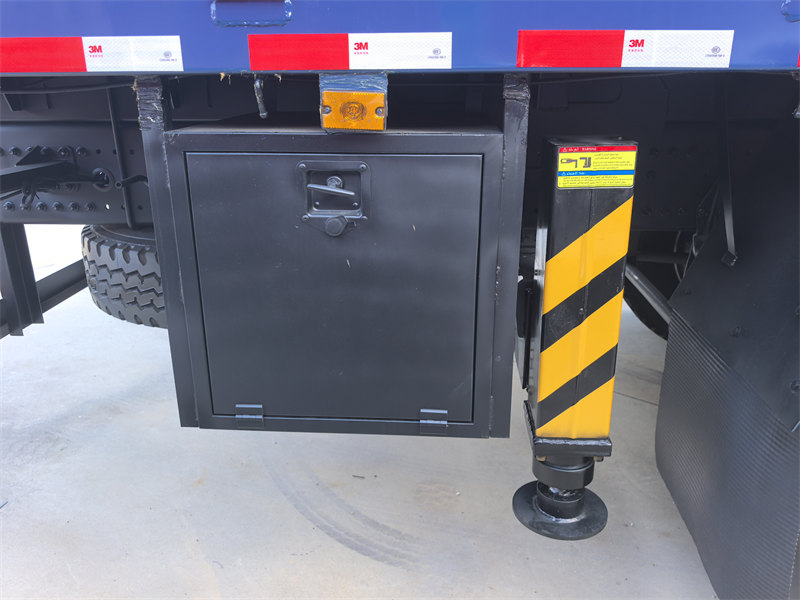

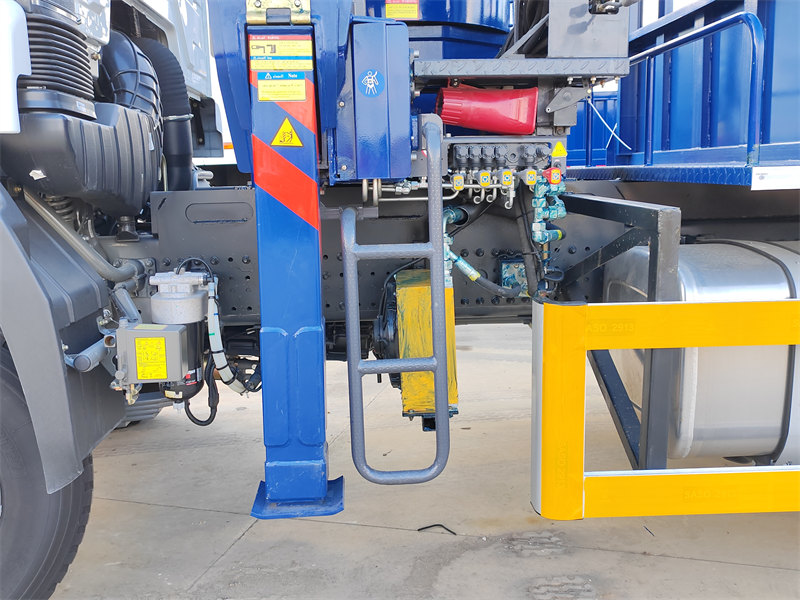

Outrigger span

2480~6070mm

Oil tank capacity

200 L

Optional function

1. knuckle boom crane.

2. Hydraulic tipper box.

3. Remote control operation

4. Grab bucket

5. Aerial work basket

Other Configuration

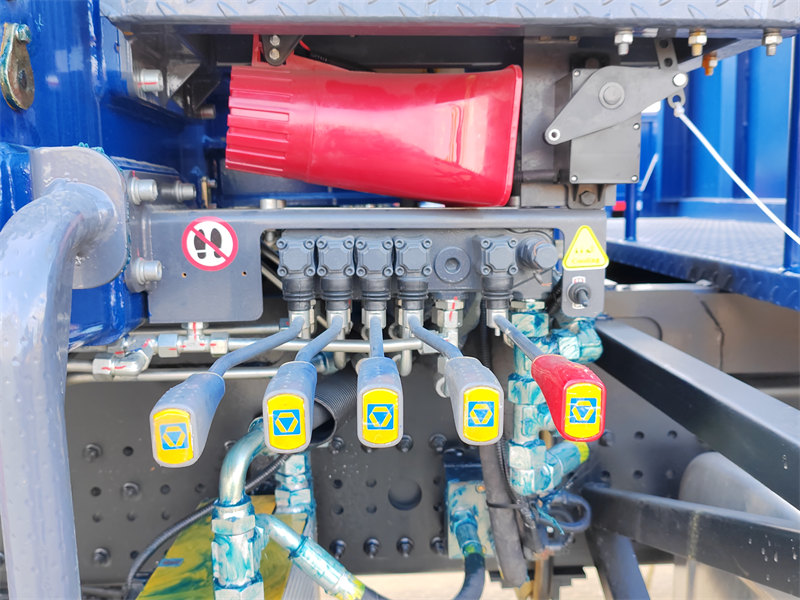

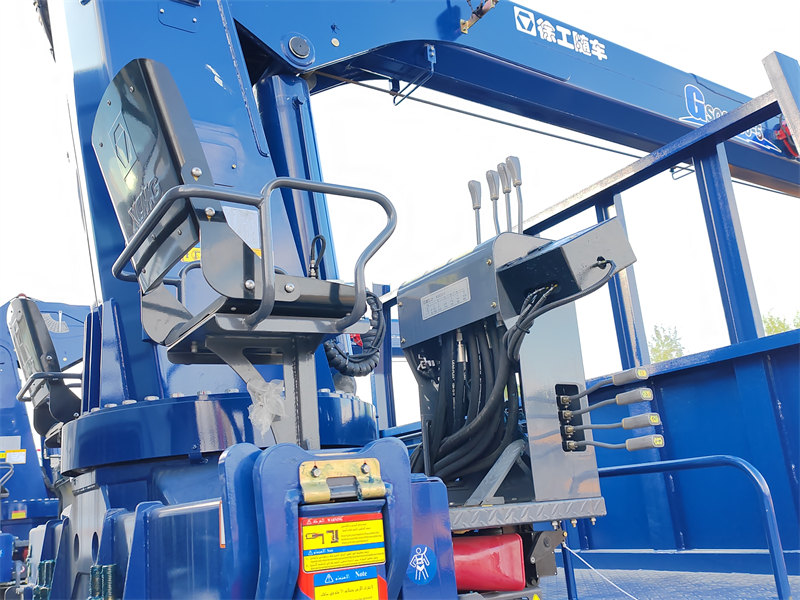

Control system in 2 side with 5 manually hydraulic joystick , etc.
