شاحنة بيبن 3142 مزودة بنظام دفع ثماني (8x8) للطرق الوعرة، مما يجعلها مناسبة للغاية للطرق الوعرة في أفريقيا والظروف الجوية القاسية. أما بالنسبة لمحرك الديزل WP12.420، beiben 3142 truck can get easy maintenance service in all round of africa countries, like kenya, congo, tanzania, angola, ghana, nigeria and other africa countries.
The core compoment of beiben 3142 cargo truck is merdes benz NG80B cabin , which show good performance and durable quality assurance. Its main frame beam is orginally absorbed from germany mercedez benz technology.
In spite of harsh working situation and 50 ton payloading capacity, beiben 8x8 truck become the first choice of congo customers.

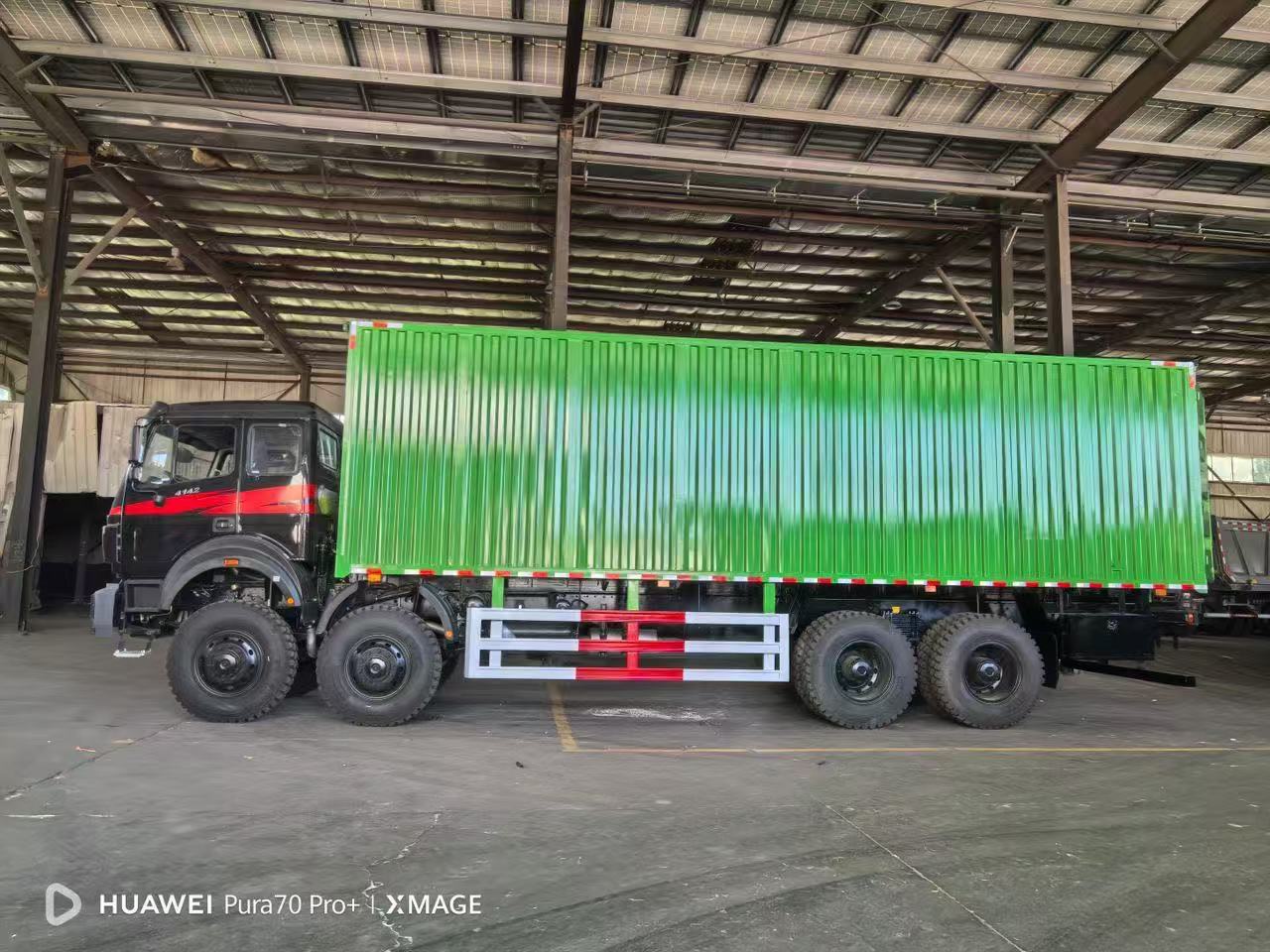

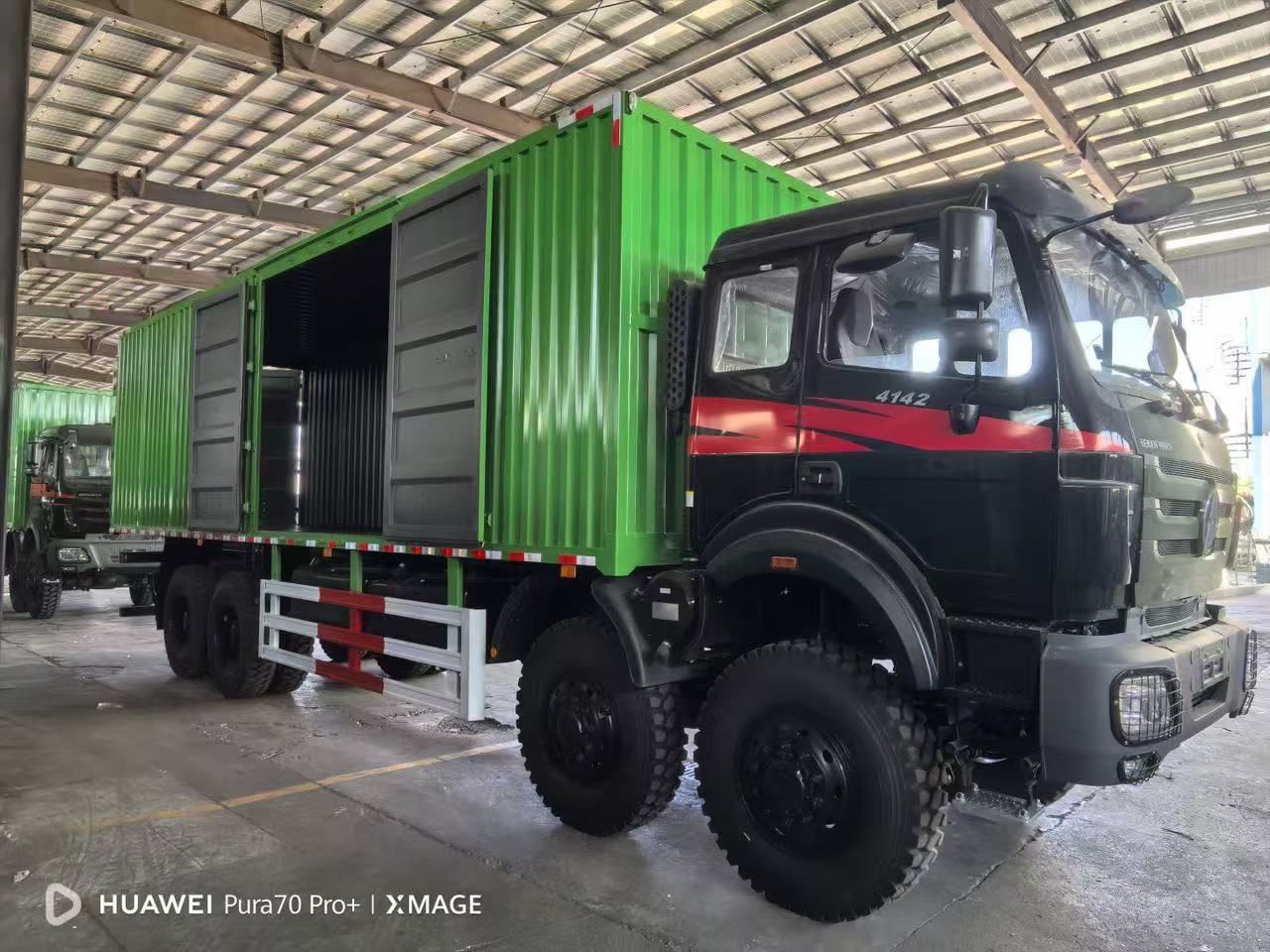

Beiben 3142 all wheel drive truck with 8X8 drive

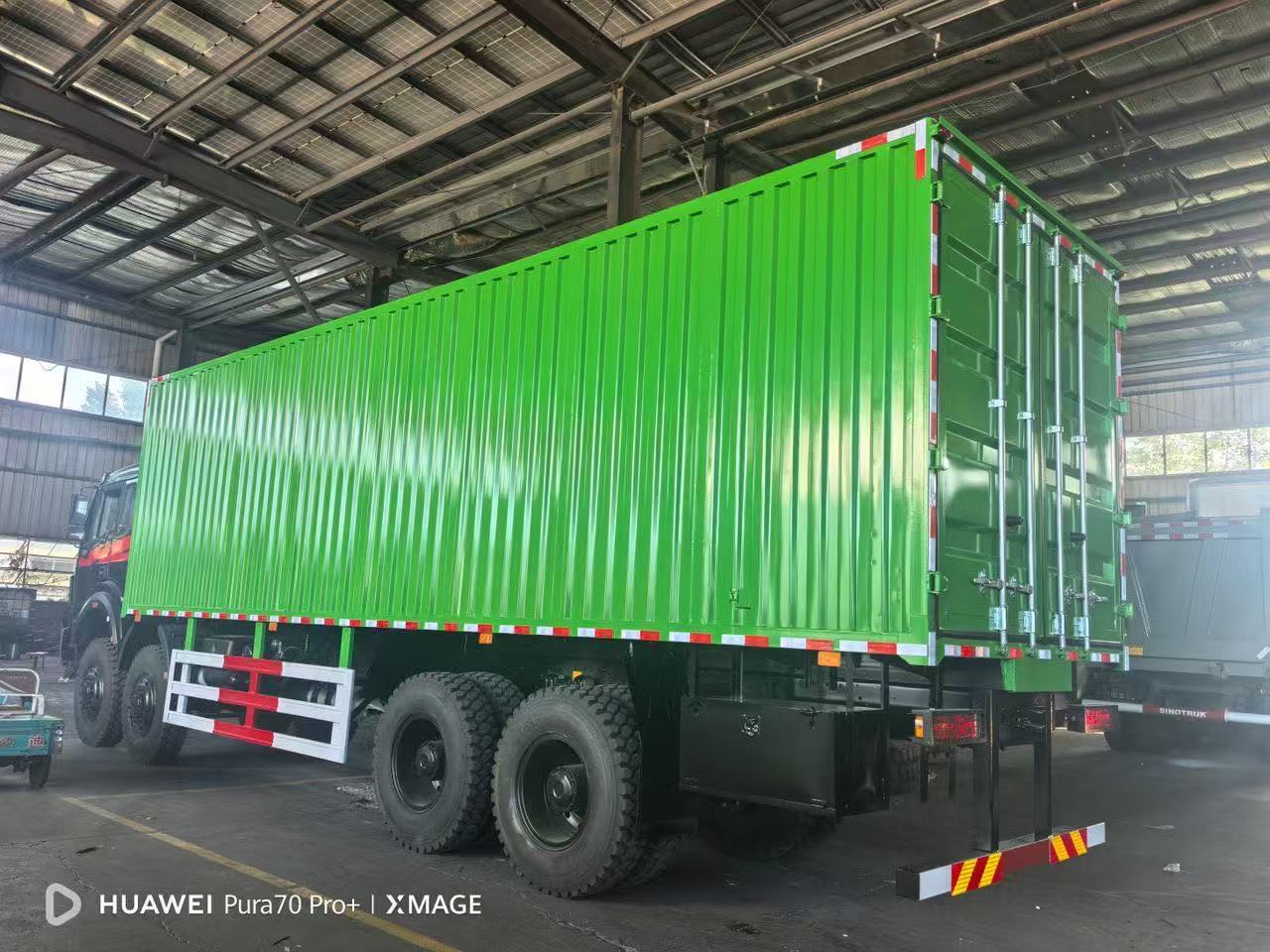

Long cargo truck chassis , which is sutiable for customizing cargo van truck
Military transfer gear box for beiben 8x8 drive cargo truck

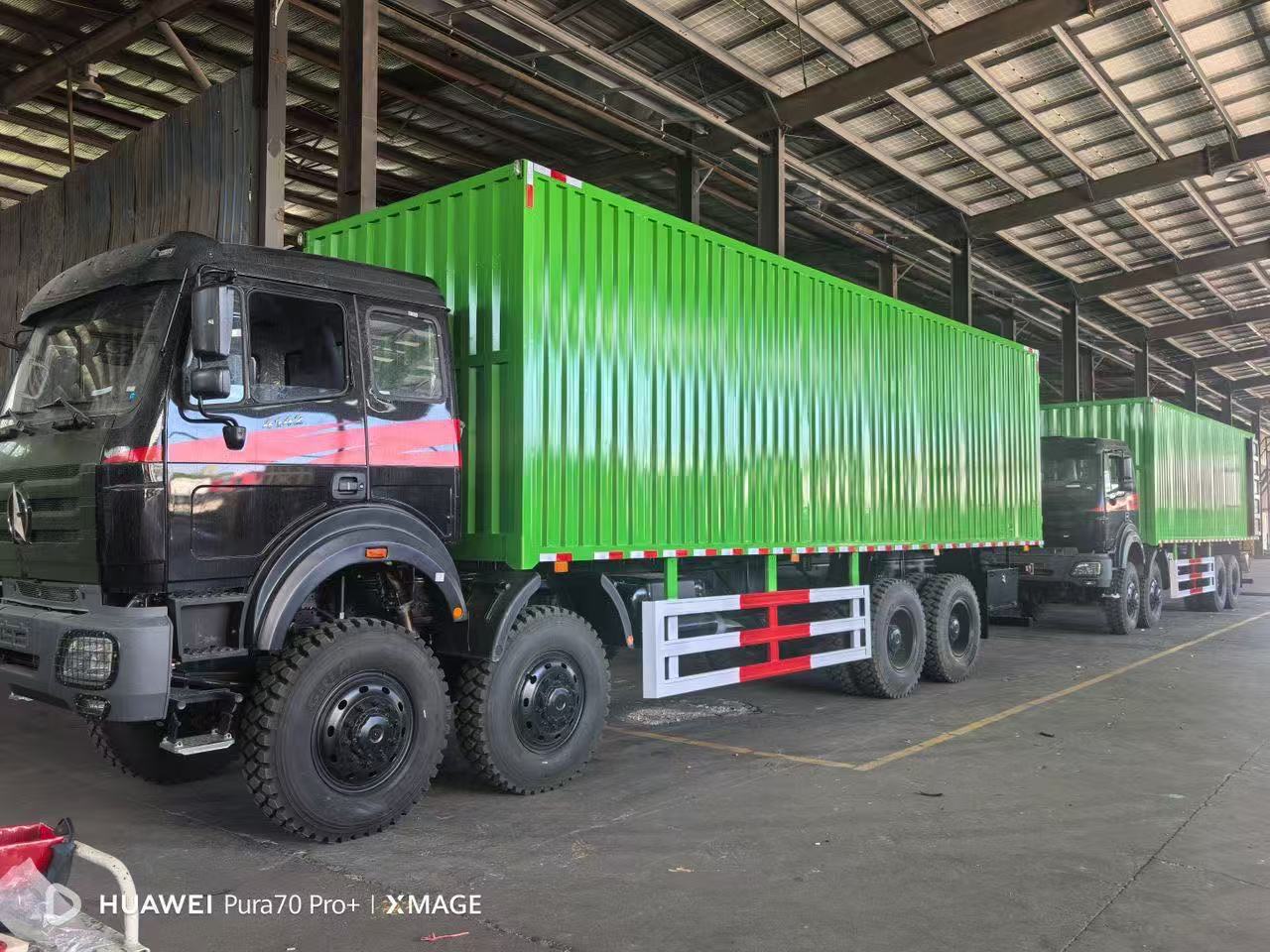

Bbeiben 8x8 drive truck for exporting to CONGO country
|
Dimension |
11500×2500×3840(mm) |
|||
|
Approaching angle/Departure angle |
26/64° |
|||
|
Overhang(front/rear) |
1410/825mm |
|||
|
Wheel base |
1950+5050+1450mm |
|||
|
Max speed |
99km/h |
|||
|
Curb weight |
9400 kg |
|||
|
Payloading weight |
39600kg |
|||
|
Slope climbing capability |
Max.40% |
|||
|
Engine |
Model |
WP12.420E32 ， water-cooled ， four strokes ， 6 cylinders in line ， turbocharged, directly injection |
||
|
Displacement |
11.726L/Diesel |
|||
|
Stroke |
126/155 mm |
|||
|
Max. power |
305/2100 (kw/rpm) |
|||
|
Max.torque |
1600/1800 （ Nm/rpm ） |
|||
|
Fuel tanker capacity |
400L |
|||
|
Clutch |
∮ 430, Single dry frictional disc ， Hydraulic boosting |
|||
|
Gearbox |
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer |
|||
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|||
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs |
||
|
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
|||
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
||
|
Assistant brake |
Engine exhaust brake |
|||
|
Park brake |
Potential springs pressing on middle and rear wheels |
|||
|
Steering system |
TAS85, whole circulation in ball, hydraulic booster |
|||
|
Transfer box |
L2000 |
|||
|
Frame |
Fish belly shape, variable width, variable sections |
|||
|
Front axle ( Mercedes Technology ) |
Double-shoe pneumatic brake, driving steering axle, 7.5 Ton |
|||
|
Middle and Rear axle ( Mercedes Technology ) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, 13 Ton |
|||
|
Tyre |
12.00R20 |
|||
|
Electrical system |
Battery |
2X12V/135Ah |
||
|
Generator |
28V-35A |
|||
|
Starter |
5.4Kw/24V |
|||
|
Cabin |
NG80B Long-Flat roof cabin with single sleeper
Covered with double layer steel plate;
|
|||
Beiben 8*8 drive truck general specification

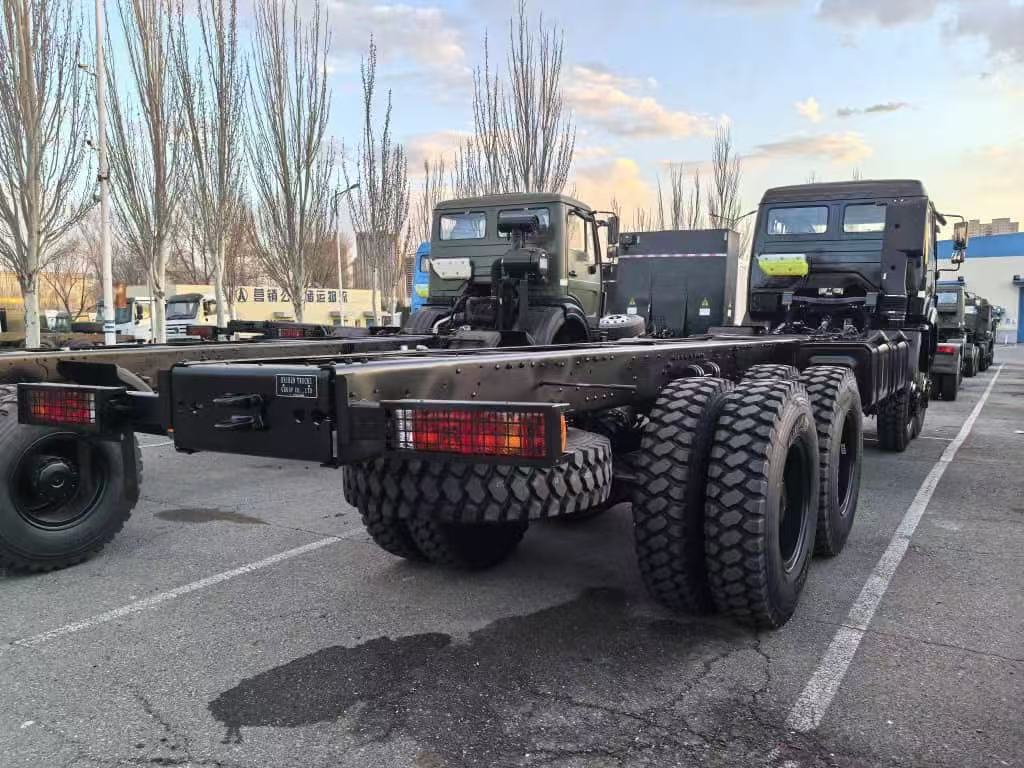

Beiben 8x8 truck chassis
Dimension: 11800x2500x3385
Kerb weight: 14400 kg
MODEL: 4142, 8x8, left hand drive
Engine: WP12.420E32, 420 hp engine
Transmission :12JS200T
Wheelbase : 1850+4450+145 m m
Max torque: 1600/1400-1600
Cabin: NG80B , with sleeper bed
Tyre : 12.00R24
Front axle : Mercedes benz ,7 T, with wheel reducer
Rear axle : Mercedes benz 13 T, with wheel reducer
With cargo box
